제품명 : 실외기 사양

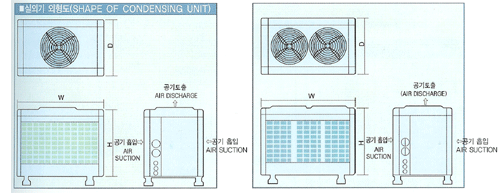

실외기외형도 1	실외기외형도 2

ITEMS	OUT DOOR UNIT		RCO30A	RCO50A	RCO75A	RCO100A	RC150A
	TYPE		HERMETIC RECIPROCATING ( 밀폐형 왕복식 )
	CAPACITY	Kw	2.2	3.75	5.5	7.5	11
	CRANKCASE HEATER	W	40	40	40	40	40
FAN	TYPE
	AIR VOL	CMM	75	120	175	230	320
	FAN MOTOR	Kw	0.4 * 6P	0.4 * 6P	0.4 * 6P	0.4 * 6P	0.75 * 6P
	SIZE	mm	φ 500	φ 500	φ 500 * 2	φ 550 * 2	φ 650 * 2
CONDENSOR	TYPE
	FACE AREA	㎥	0.73	0.80	1.05	1.38	1.92
	SIZE		2R24S600L * 2EA	3R20S790 * 2EA	3R20S1030 * 2EA	3R24S1130L * 2EA	4R281350L * 2EA
DIMENSION	HIGHT	Mm	900	1,100	1,145	1,145	1,300
	WIDTH	Mm	820	1,020	1,280	1,380	1,600
	DEPTH	Mm	700	670	690	690	790
PIPESIZE	SUCTION	Mm	φ 15.88	φ 22.22	φ 28.58	φ 28.58	φ 34.54
PIPESIZE	LIQUID	Mm	φ 9.53	φ 12.7	φ 19.05	φ 19.05	φ 19.05
WEIGHT		kg	110	130	180	230	370
